Description

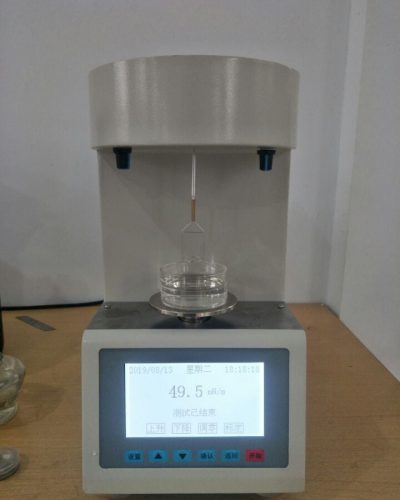

HTID Automatic Oil Interface Tension Meter
Description:
HTID automatic oil interface tension tester is used to measure the surface tension of various liquids (liquid-gas interface) and the interfacial tension between mineral oil and water (liquid-liquid interface) based on GB6541-86 “petroleum products oil to water interfacial tension measurement method” (ring method). It is easy to operate by pressing the LCD menu with high reliability. Widely applied in the electric, petroleum, chemical, medicine, food, and teaching filed.
Interface Tension Meter's Features
1.Adopts unique and quick electromagnetic balance sensor for improving measurement accuracy and linearity.
2.Real-time indicates equivalent tension value and current weight.
3.Only uses one-point calibration to solve the problem of the previous sensor that needs multi-point calibration. It is no need to use zero potentiometer and full range potentiometer.
4.Integrated temperature detection circuit and auto temperature compensation of measurement result.
5.240X128 lattice LCD screen. No marked button has the function of screen protection.
6.Built-in high-speed thermal micro-printer to print out quickly. It has the function of an offline printer.
7.Equips with RC232 interface, it can connect with computer to deal with measurement data.
Interface Tension Meter's Parameters
Measurement Range | 0-200mN/m |
Accuracy | 0.1% reading ±0.1 mN/m |
Resolution | 0.1mN/m |
Sensitivity | 0.1mN/m |
Power Supply | AC220V±20% 50HZ±10% |
Max Power Dissipation | 20W |
Environment Temperature | 10~30ºC |
Environment Humidity | ≤85% RH |
Dimension | 200×300×330mm |
Weight | 6kg |
Packing and Delivery
ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty-six (26) months from the date of shipment or twenty-four (24) months after the start-up of the system. ASSEN’s obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
1.We customize the machine to your requirements.
2. We have more than 20 years of export experience.
3. We offer our customers high-quality products at a competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
