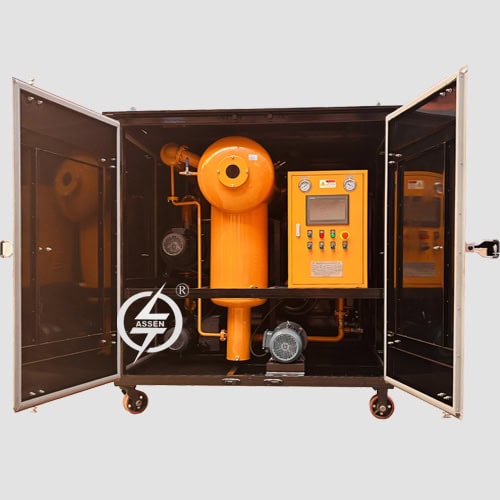

6000 L/Hr Portable Transformer Oil Filtering System,Oil Dehydration unit

ASSEN DVTP Transformer Oil Filtration machine is used in repair of power transformers and reactors with voltage up to 110 kV inclusively, and for recondition of transformer oils and also at mineral oil facilities in view of further regeneration.

Description

DVTP Series Double-stage Transformer Oil Filtering Machine is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matter, etc. from the insulating oil effectively and rapidly so as to boost the performance of transformers, circuit breakers, mutual inducts, cable, and capacitors which have insulation system. DVTP series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer.

ASSEN Transformer Oil Filtering Machine is very effective, durable, and user-friendly with top-quality components and maintenance-free operation.

Features

transformer oil filtering

Use ASSEN patented T model advanced degassing and dehydration system, built-in secondary evaporation barrier, which can increase the contact area of oil film, quickly separate water and gas in oil, and the efficiency is twice that of similar products

High-grade β precision filter material, the filter element is large in volume, better storage capacity and service life is long.

transformer oil filtering

Short filtering process time, two-stage high vacuum and high pumping speed can quickly and efficiently remove the water vapor in the oil, so that the drying degree of the oil and the breakdown voltage value can be greatly improved.

Interlocked protection system which will avoid overload. over voltage, pumping without oil, heating without oil, oil leak, electricity leak and prevent any damages to equipment due to operating error or power failure.

transformer oil filtration

After treatment,oil quality guarantees to the following specifications.

Moisture

PPM

≤3

Gas content

%

≤0.01

Impurity size

μ

≤1 (no free carbon)

Breakdown voltage

kV

≥75

IFT

dynes/cm

≥40

Acid value

mgKOH/g

≤0.03

Dielectric loss factors

tgδ(90°C)

≤0.001

Features:
1.Dehydration, degassing, and impurity removal of 110-1100KV main transformer insulation oil.
2.Acetylene removal of 110-1100KV main transformer insulation oil.
3.Vacuum drying of 110-1100KV main transformer insulation oil.
4.Enhance the value of breakdown voltage greatly
5.It is equipped with leakage and overload stop devices to protect the motor
6.Precision oil pumps have low noise and environmental regulatory compliance will be well met.

Transformer Oil Filtering Machine's Technical Parameters

Parameters

Unit

ZYD-100

Flow

L/Hr

6,000

Working vacuum

Mpa

-0.08 ~ -0.099

Working Pressure

Mpa

≤0.4

Temperature Range

0 ~ 100

Power



380V,3P,50Hz or as need’s

Working hours without Trouble

Hour

8000

Continuous Working Hours

Hour

360

Working Noise

dB(A)

75

Heating Power

KW

60

Total Power

KW

75

Inlet/Outlet

mm

Φ40

Weight

Kg

750

Overall

Length

mm

1980

Width

mm

1850

Height

mm

1850

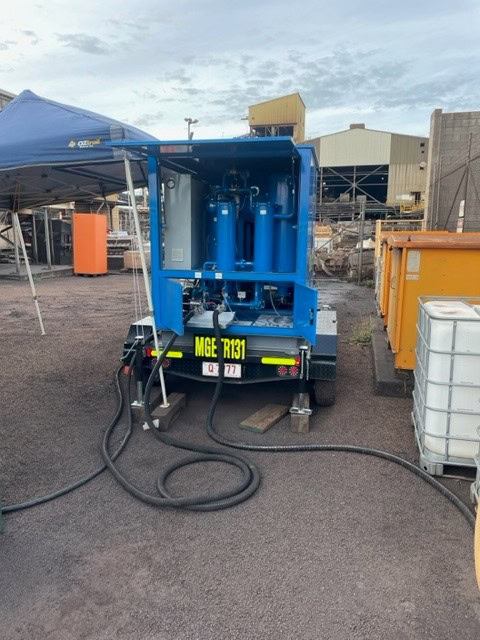

On-site Projects
Our Service
  • Your inquiry related to our products or prices will be replied to in 24 hours.
  • Well-trained and experienced staff to answer all your inquires in fluent English.
  • Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on-time delivery, reliable warranty, etc.
  • OEM is available for Assen Products.
  • Protection of your sales area, ideas of design, and all your private information.

ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty-six (26) months from the date of shipment or twenty-four (24) months after the start-up of the system. ASSEN’s obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
